For many years, I've had a lot of hard drives being used for data storage. Movies, TV shows, music, apps, games, backups, documents, and other data have been moved between hard drives and stored in inconsistent places. This has always been the cheap and easy approach, but it has never been really satisfying. And with little to no redundancy, I've suffered a non-trivial amount of data loss as drives die and files get lost. Now, I'm not alone to have this problem, and others have figured out ways of solving it. One of the most interesting has been in the form of a computer dedicated to one thing: storing data, and lots of it. These computers are called network-attached storage, or NAS, computers. A NAS is a specialized computer that has lots of hard drives, a fast connection to the local network, and...that's about it. It doesn't need a high-end graphics card, or a 20-inch monitor, or other things we typically associate with computers. It just sits on the network and quietly serves and stores files. There are off-the-shelf boxes you can buy to do this, such as machines made by Synology or Drobo, and you can assemble one yourself for the job.
I've been considering making a NAS for myself for over a year, but kept putting it off due to expense and difficulty. But a short time ago, I finally pulled the trigger on a custom assembled machine for storing data. Lots of it; almost 11 terabytes of storage, in fact. This machine is made up of 6 hard drives, and is capable of withstanding a failure on two of them without losing a single file. If any drives do fail, I can replace them and keep on working. And these 11 terabytes act as one giant hard drive, not as 6 independent ones that have to be organized separately. It's an investment in my storage needs that should grow as I need it to, and last several years.
Building a NAS took a lot of research, and other people have been equally interested in building their own NAS storage system, so I have condensed what I learned and built into this post. Doing this yourself is not for the faint of heart; it took at least 12 hours of work to assemble and setup the NAS to my needs, and required knowledge of how UNIX worked in order to make what I wanted. This post walks through a lot of that, but still requires skill in system administration (and no, I probably won't be able to help you figure out why your system is not working). If you've never run your own server before, you may find this to be too overwhelming, and would be better suited with an off-the-shelf NAS solution. However, building the machine yourself is far more flexible and powerful, and offers some really useful automation and service-level tools that turn it from a dumb hard drive to an integral part of your data and media workflows.
Before we begin, I'd like to talk about the concepts and terminology to be discussed as part of the assembly. Feel free to skip this section if you already understand RAID, ZFS, and computer assembly.
Data Storage for Newbies
At its core, a NAS is just a computer with a number of hard drives in it. Its only purpose is to store and load data, and make all that stuff available over the network. Since all it's ever doing is holding on to lots of data, you typically don't need a lot of the things that you'd put into a normal computer; stuff like a graphics card, keyboard, mouse, and monitor aren't needed very much. You instead buy parts that focus on a few key areas: number of hard drives you can connect, and how fast you can get data in and out. In this case, you need these parts:
- a motherboard
- a CPU
- some RAM
- a bunch of hard drives
- a power supply
- a case to put everything inside of
Your laptop has a hard drive in it. If you've ever plugged in an external drive or a Flash drive, you'd see that they're two separate places for you to store stuff. If one of them fails, you lose all of the data on it, but it doesn't affect the data on your other drives. And you have to organize everything yourself. Trying to scale up to 4 or 6 or 10 drives sounds like a disaster. What we really would like is to make all of those drives pretend like they're one giant hard drive. And we'd like to be resilient to a hard drive dying without losing data.
There's a tool for this, and it's called RAID, or "redundant array of independent disks". RAID is a set of technologies that takes multiple hard drives, called an array, and combines them under the hood to make them look and act like one giant hard drive. The way this works is complicated, but the basic idea is that RAID takes a file, chops it up into little pieces, and spreads them out across all your hard drives. Then, when you want the file, RAID will grab all those pieces from each hard drive and combine them back into the original file. (Please note: this is an overly simplified discussion of the technology, and is not technically accurate, but is adequate for our purposes of conceptualizing.) There are different strategies called "RAID levels" you can use that will change the specific behavior; some are more focused on redundancy, some are focused on speed.
The benefits you get with most RAID levels are: a bunch of hard drives that look like one storage place, improved speed when reading/writing data, the ability to survive a drive failing, and the ability to replace a dead drive with a new one. However, the downside is potentially a big one. Because the files are never stored as a whole on one drive, if you lose enough drives at once and don't replace them in time, you lose all the data, even on drives that haven't failed. Depending on your RAID level, you can survive zero, one, two, three, or more drives failing. But the more dead drives you want to be able to withstand, the more storage of those drives gets used for redundant data. So it's a balance of how much storage you want vs. how much protection you want from dying drives. You can calculate how much storage you'll have based on how many drives you buy using a RAID calculator. A healthy minimum is that for every 3 drives you buy, you want to be able to withstand one failing. So 2 or 3 drives should withstand 1 drive failing, 4-6 drives should withstand 2 failing, 7-9 should withstand 3, etc.
For this build, I set up my array as a form of RAID called RAID-Z2. RAID-Z and RAID-Z2 are based on a technology called ZFS, which is a modern file system that supports "storage pools". This gives us the "make a bunch of hard drives act like one giant hard drive" behavior, which RAID-Z builds on to give us the "survive a hard drive failure" behavior we want. RAID-Z lets you survive one drive failure, RAID-Z2 lets you survive two, RAID-Z3 lets you survive 3. The major downside to RAID-Z is that it requires all data to be processed by the CPU, so you'll want something reasonably fast to process your data. The more drives you add, the bigger the CPU will need to be.
Building the Computer
The part that was the most daunting for me to overcome was actually purchasing the pieces necessary to build the computer. I'm a software guy who's owned Macs all my life, so I've never actually assembled a computer before (I will take this opportunity to let all the nerds out there get a good laugh in before we move on). If the idea of building your own computer is scary, you may want to just go buy an off-the-shelf NAS, such as the Synology DS413j and stop reading. Keep in mind, though, that a preassembled NAS will be more expensive and far less flexible than building one yourself.
After waffling on this for months, I finally decided to go the custom build approach. I figured I could make it cheaper, quieter, and run whatever services I wanted directly on the machine by building it myself. After putting some pieces together, here's the parts I went with. Prices are what they cost as of September 30, 2012. All links to Amazon include affiliate links, so I get a tiny kickback. Feel free to search for the part names if you wish. You may be able to find these parts cheaper elsewhere on the Internet.
- Motherboard: Gigabyte GA-H61MA-D3V Micro ATX LGA1155 - $64.99
- CPU: Intel Celeron G540 2.5GHz Dual-Core - $49.98
- CPU Cooler: Arctic Cooling Freezer 7 Pro Rev.2 92mm Fluid Dynamic CPU Cooler - $29.99
- RAM: Pareema 16GB (2 x 8GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10600) Desktop Memory Model MD313D81609L2 - $64.99
- Power Supply: Antec EarthWatts EA-380D Green 380 Watt 80 PLUS BRONZE - $44.99
- Case: Fractal Design Define Mini - $95.98
- Hard Drives: Seagate Barracuda 7200RPM 3.5-Inch Internal Bare Drive ST3000DM001 - $149 each (six drives + two spares)
- Cost without drives: $292.92
- Cost with drives: $1492.20
A few notes about this hardware configuration:
- The case has 6 hard drive slots, so you can put up to 6 drives in it. You can, of course, put fewer in it.
- The motherboard has 6 SATA ports, but only two are 6 Gbps, while the others are 3 Gbps.
- The power supply has 5 SATA connections, so if you want to run 6 drives, you'll need a Molex to SATA power adapter.
- Besides the Molex adapter, the parts mentioned all the cables necessary for internal setup. But you will need your own power cable.
- The motherboard includes some onboard graphics, and you'll want to have a DVI monitor available for making sure the machine is booting correctly. You won't need to keep it plugged in beyond setup, however.
- RAM is cheap, and if you're accessing the same files over and over, they can remain in RAM and be even faster than loading from disk. It's better not to skimp on this. Just make sure your CPU is 64-bit.
- There's no Wi-Fi here, so you'll either need to get a wireless card or (ideally) plug an Ethernet cable into it connected to your network.
Installing the OS
For the operating system, I decided to use FreeNAS 8.2, a distro of FreeBSD that is designed to run ZFS-based RAID systems. It includes a web-based administration tool that lets you set up the array, monitor it, set up tests to detect failing drives, run services and plugins, and lots of other stuff. To run this, I copied it to a USB key (at least 2 GB necessary, you probably want 4 GB) and just leave that plugged in to the back of the machine all the time. Once you copy the image onto the key, you set the default boot drive to the USB key, and it will boot to it each time. You will also need a keyboard (and note, Apple's keyboards will not work with this setup, so have a USB or even a PS/2 Windows keyboard) to get into the BIOS settings. After you have the BIOS auto-boot set up, when you turn the computer on, it'll take a minute or two to set everything up, and then the web admin will be available on your local network. If you have a router that can tell you what's connected, you can get the IP there; otherwise, plug a monitor into the motherboard and it'll tell you the IP. If your router supports it, you should grab the MAC address and assign it to a static IP on your network so that your NAS is always available on the same IP address. Once this is all running automatically, you can disconnect the monitor and keyboard and just run the machine headless.
The web admin is divided into a few sections. Along the top are the sections/actions that are the most commonly used; System, Network, Storage, Sharing, Services, Account, Help, Alert Status, and Log Out. The absolute first thing you should do is click the Account button and change the username and password for the admin account (which you got logged into automatically). Once this is set, nobody will be able to log in to the web admin without these credentials, or without physical access to the machine (as you can disable the login from the console if you have a monitor/keyboard attached). You'll also want to click the Users tab in that section and create a user for yourself for connecting to the array. Make sure it's in the group "wheel", at the very least.
Once you have that out of the way, you can set up your storage array and actually get those hard drives to do something. Click Storage at the top to view the Active Volumes, which is empty, as we haven't set any up yet. Set one up by clicking the Volume Manager button; give the volume a name (I just called mine "Main"), select all the disks from your list, choose ZFS, then choose your RAID-Z level. Click Add, and after some processing, you'll have a giant hard drive. The amount of storage will be considerably less than the sum capacity of the hard drives you put in, as it is reporting the capacity after taking out the backup data it will eventually be storing. In my case, the 6x3TB drives have about 16.3 TB of raw capacity, but after the backup data in RAID-Z2 is accounted for, only 10.7 TB is available. Note: If you added 6 drives to the array, you should see 6 drives in the list when creating the volume; if you don't, you probably didn't connect something correctly inside the machine. Make sure you set the permissions on this new volume so your user can access it, and do this recursively.
ZFS has a cool feature called "datasets". A dataset is just a folder with special types of rules around how big those folders can be. You can set a quota, which is the maximum size a folder can grow to, and a reserved space amount, which (as the name implies) reserves a certain amount of space for use in that folder. You can customize permissions on these separately from the whole array. You can set certain compression levels based on if you're more concerned with speed vs space. All of these values can be changed later. You can also ignore all of this, and just use datasets for organization. So, for example, I have two primary datasets:
- Media, which has no quota or reserved space, permissions set so that anyone can read but only I can write, and no compression so it can stream fast, and
- Backups, for Time Machine, which has the maximum level of compression (as read/write speed doesn't matter), no access to anyone except my user, and a quota of 500 GB
Actually Getting Data In/Out
So now I have a ZFS volume running RAID-Z2,
/mnt/Main, which has two datasets,
/mnt/Main/Backups. Now we need to actually make them available for use by other computers. To do this, we set up Shares. FreeNAS has three different types of shares - AFP (for Macs), CIFS (for Windows, also known as SMB or Samba), and NFS (for Unix/Linux/FreeBSD). For our purposes, I will be setting up two AFP shares, one for each of the two datasets.
Shares are a type of Service, which is a program that FreeNAS will run automatically for you. Besides Shares, FreeNAS has services for things like FTP, LDAP, Rsync, SSH, UPS integration, and plugins. At the top of the admin UI, click Services, and click the On/Off switch next to the AFP service to start it up. Feel free to turn on whatever else you like (except Plugins, which will not quite work out of the box, but I'll discuss Plugins at greater length below). You may be prompted for settings before a given service will start.
Now you can create your Shares. Click the Sharing tab at the top, and make sure "Apple (AFP)" is selected. Click the "Add Apple (AFP) Share" button, and you'll be prompted with a daunting form. You can leave some of the more confusing fields as their default. The fields you really need to worry about are:
- Name, the displayed name of the share
- Path, where you want the share to point
- Share password, if you want to set a password
- Allow/Deny list and Read-Only/Read-Write Access, to control who can do what on the share
- Disk Discovery, which will allow the share to be seen if you just ask the server for a list of shares
- Disk Discovery Mode, which will let you toggle between a normal Finder share and a Time Machine backup share
- Permissions, which let you control who can read, write, and run programs on the share
Once you have this in place, click OK, and you'll have created the Share. If you enabled Disk Discovery mode, your NAS should appear in the Finder's sidebar. If you did not, you can connect to it by selecting "Connect To Server" from the Go menu in the Finder (⌘K), and typing
afp://NAS_IP/SHARE_NAME and filling in the
SHARE_NAME as appropriate. Authenticate if you set it up, and you should be connected. Then you can drag stuff from your hard drive into the share and it will copy over. You can also use
cp from the Terminal to copy data.
When I tried setting this up originally, I got permissions errors while doing this. My rules for setting the permissions up are:
- Make sure the user you want to have read/write access is in both the allow list and the read-write access list
- If you want read-only access available to everyone, add
@nobodyto the allow list and the read-only list
- Set all file/directory permissions to on, with the exception of "other/write".
- Set the owner of the ZFS dataset to your user, and set all the permissions there to on, with the exception of "other/write".
To test the permissions on the ZFS dataset, the easiest thing to do is enable the SSH service, SSH into the machine with your user account,
cd into the dataset, and try to
touch a file. If it fails, you can't write. If it does work,
cat the file; if it fails, you can't read. If that succeeds, but trying to connect via AFP doesn't let you read/write files, the error is on the AFP share permissions.
Keeping Your NAS Healthy
If you have a system dedicated to making sure your data is reliably accessible, you want to know sooner rather than later if you're going to have hard drive problems. FreeNAS includes a drive testing system called S.M.A.R.T. which is a tool for testing your drives to determine if they are behaving abnormally (higher temperature, higher error rates when reading data, lower throughput, etc.). These can then be emailed to you on a schedule you decide for your analysis. These tests are not run on the array as a whole, but rather on individual disks within the array. These tests can be created and found on the sidebar, under System > S.M.A.R.T. Tests.
I rely primarily on the "short" S.M.A.R.T. test which runs once a day, and occasionally a "long" test which runs manually when I won't need the array for awhile. The short test scans electrical circuits and selected parts of the disk for errors, and these tests take only a couple of minutes. The long test scans every bit on the drive for failures; this takes a very long time, especially on high capacity disks, so it should be run infrequently. There's also a "conveyance" test, which is useful to run before/after moving the drives, to determine if they were damaged during transport. Set these up at your preference.
The easiest way to see this data is to have it emailed to you. Test reports are sent to the email address associated with the root user. To change this, select Account > Users > View Users from the sidebar. In the list that appears, the root user will be at the top of the second list. The last button lets you change the email address, so set this to your email address. You then have tell FreeNAS how to connect to an SMTP server with an account. You can use Gmail or iCloud for this. On the sidebar, select System > Settings and choose the Email tab. Fill out the fields as appropriate for your mail server. Once this is in place, you can send a test email. If you get it, you're all set up, and your S.M.A.R.T. tests will send their results to you when they run.
Extending with Plugins
Note: This is a more advanced topic, and to make this work you'll need an understanding of how SSH and shell access works, which is beyond the scope of this post.
FreeNAS 8.2 introduced a plugin system based on FreeBSD jails, which are sandboxed environments for programs to run in. Plugins are like other services that run automatically in the background, but instead of being services for managing the array themselves, they are apps that you might want to run directly on your storage array. As they are sandboxed, they will only be able to write to specific folders in your array. A number of services have been ported to the FreeNAS plugin format, and you can use these to extend your array's functionality and provide even more utility. I'll demonstrate how to set up Transmission, the BitTorrent client, to run natively on your NAS. You can find other plugins on the FreeNAS Forums, or even make them yourself if the app has been ported to FreeBSD.
To begin, we need a place on the array to store plugins, and to store the Jail. Create two ZFS datasets for this (I call them "Jail" and "Plugins"). You'll rarely need to go in here manually, but the plugin system needs a place for this stuff to live. All FreeNAS plugins are .pbi files, and in fact the service that runs the plugins is itself a pbi file, which is not installed by default. Once you have your datasets set up, go to the Services tab, and click the settings icon next to the Plugins service. There are three steps to the installation. First, it needs a temporary place to store the plugin while it installs (this will be the root of your ZFS volume). Next, it needs to know the path to your dataset for your jail and plugins folder, as well as the IP address you're going to use as the jail's IP (make this something unique, out of your DHCP range). Finally, it needs the plugin service PBI that is appropriate for the version of FreeNAS you're using and the architecture of your CPU.
If it installed successfully, you can then install plugins. Near the top is a tab called "Plugins". Here you can upload the pbi for whatever plugin you like. On the page where you downloaded the plugin service PBI, you can also download the pbi for Transmission. Download it from the site and upload it to your NAS. You'll have to set up the parameters before you can turn it on. Make note of the Download directory you specify, as we'll need it later (but you can leave it as the default). Then, you can turn it on and access it by going to
http://JAIL_IP:9091/ in your browser.
Now, before we go on a download spree, we need to understand where those files will end up. They go into the Download directory specified in the settings, which for me was
/usr/pbi/transmission-amd64/etc/transmission/home/Downloads. But there's a catch: since this is in a FreeBSD jail, that path is relative to the jail root, which is itself part of your array. Now, you can access that folder, but you probably will want to set up a nicer path for it, that doesn't go through your jail.
That's where Mount Points come in. A Mount Point is a way of making a folder available from the outside of your jail to inside of it. So you can set up a Downloads dataset at
/mnt/Main/Downloads, and establish a Mount Point from that to the Transmission download folder, and suddenly everything Transmission downloads will appear in
/mnt/Main/Downloads, even though Transmission itself is jailed. In the Plugins tab of Services, there is a "View Mount Points" button. If you add a mount point, it asks you what the route is you want to set up. So for the case above, we need a mount point that looks like this:
Once this is set up, turn it on, and it will just start writing data from the Transmission downloads folder into your Downloads dataset. You may have to fiddle with permissions; I found I had to make the folder within the jail writable by the user that was running the Transmission process. To enter a jail, SSH in to the NAS box as a user in the wheel group,
su root, and run
jexec 1 csh. To exit, just

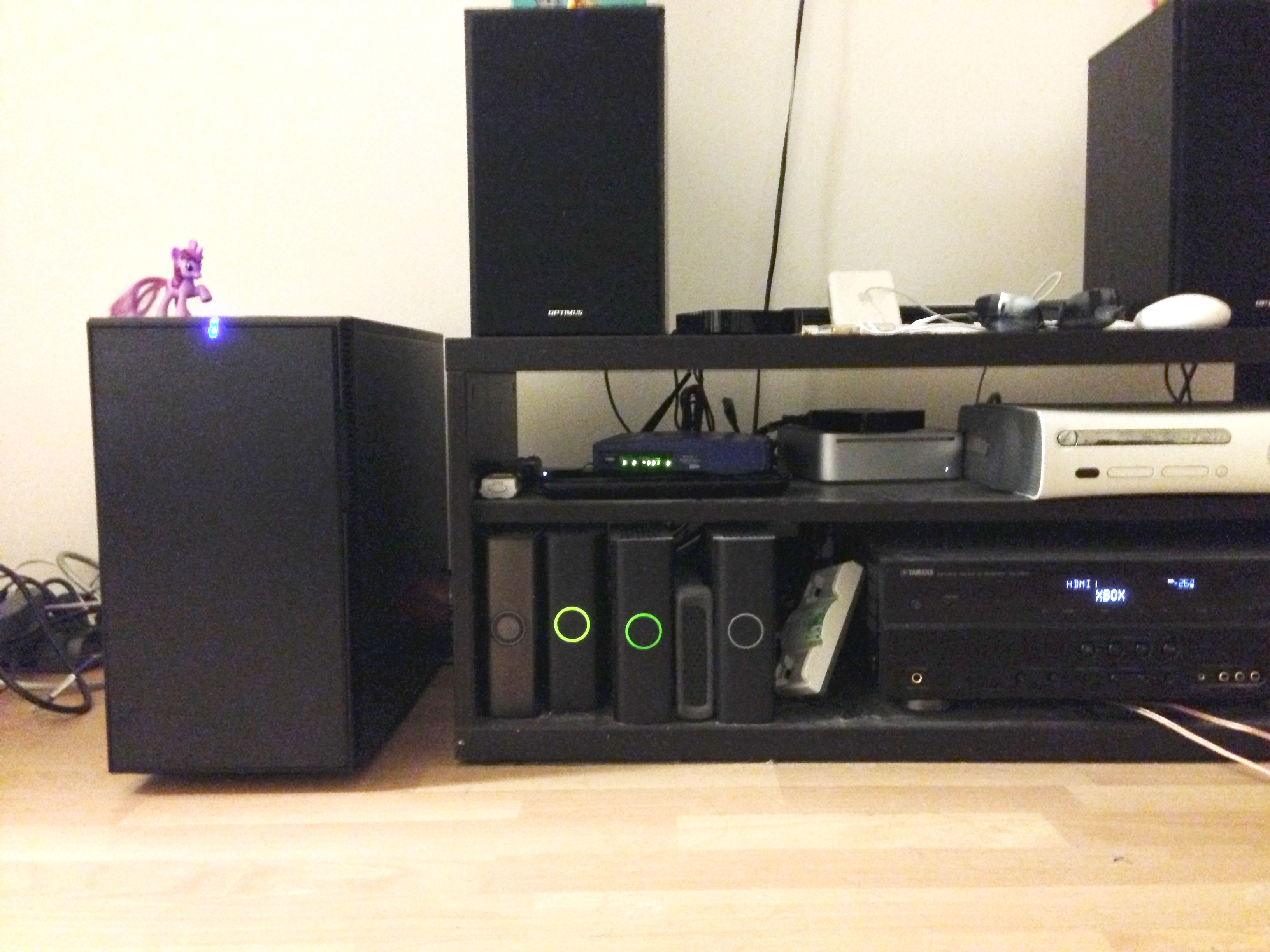

The case was larger than I expected, but not too large. It's about as tall and deep as my media center, so it sits nicely next to it (which is handy as that's where my Internet switch is). The case looks great, with off-black on all sides and no obnoxious branding on the front, and has some convenient USB ports on top. The only problem with the front is that the case has a power button on the top with a REALLY BRIGHT BLUE LED noting that the machine is on; I would love to figure out a way to turn that off (or at least knock the brightness down). But the real win here is that the case is very quiet. It has noise insulating material on the walls, which knock down the sound, and the hard drive trays have rubber grommets on the screw holes, which helps quiet the spinning of the hard drives. The case emits so little sound that, even with 6 hard drives and fans, the entire thing is less noisy than a single Western Digital MyBook (and I had 5 of those to replace). It blew away my expectations of noise.
The machine is quite fast. It handles reading and writing stuff like a champ, downloading and streaming at the same time with no problems. It's been running for weeks at a time with no uptime issues. Even with 7 plugin services running, it has all run very, very smoothly. I've run into one or two bugs in the FreeNAS web admin UI, mostly happening when you try to save an options form that includes a permissions field (when you aren't actually changing permissions). When this happens, a manual reboot of the machine fixes the problems, and since it's manual you can take down connections as you need to. But you really shouldn't have to change them once they're set up, so this is a problem of setup more than anything.
The permissions on the system remain the biggest single headache. I've definitely spent most of my time struggling to make sense of the permission model, which gets more complicated and difficult to track down when you introduce Shares and Mount Points into the mix. But once you have it figured out, you can build in the permissions you want to offer and it will stick. You can also SSH in to the system to see the permissions at the UNIX level, which is helpful if you're familiar with the shell.
The second biggest headache has been learning FreeBSD, which is starkly different from Linux or Mac OS X. There have been several times where I'll do some muscle-memory shell command, like
sudo su transmission, and it will fail because FreeBSD does things a little differently (in this case, I've been doing
su root followed by
su transmission). These are probably just differently configured and there's ways to get it to do what I want, but it's not a big deal.
However, nits aside, once this system is running, it's providing a ton of value. As someone who has always cobbled together storage based on what I had and what was the easiest to get setup, this definitely took more discipline to configure and get working properly, but the value is paying off huge. Since everything is pooled together, I have more incentive to keep it organized and optimized for how I want to use it. The assumptions I set up for myself and through the plugins mean everything works as I want and everything ends up where I need it to be. The extra effort makes it a more useful system.
Building a NAS is not for the cheap or faint of heart. It requires money, time, and effort to build into a great storage system. It is also not a panacea of storage; you still want to back up critical stuff onto a different drive, ideally offsite or in the cloud, and you still need to worry about drives failing. But if you put that energy in, you'll end up with an indispensable tool that will be more reliable and more powerful than a glued-together system of disparate components and wonky services. It's an investment that I'm hoping will pay off for a number of years.
I grew up knowing how to play music. My parents started me on piano lessons when I was very young, and played violin in middle and high school. When I was in college, I taught myself how to be a human beatbox. Lately, my tastes in music have turned more towards the electronic spectrum; perhaps a fitting choice, given my software engineer background. For years, I've owned a copy of Apple's Logic audio production app (Logic Express 8, and recently upgraded to Logic Pro 9). And while I had played with it on and off, I never really finished anything, due both to a perceived lack of skill and a lack of confidence in ability to actually make something worthwhile.
Fast forward to a time when the Korean pop song Gangnam Style by PSY has taken the Internet by storm, racking up a hundred million views in a few weeks. Mashups of this song came out quickly and by lots of people. I've had a fascination with this song since I'd first heard it. That everyone else was getting into mashups of a song I was completely hooked on created an itch in my brain to give it a try. At the very least, I could put some ideas in and see what happened; I was safe in my insecurity about my own ability because I never had to let another soul hear whatever came out.
Last weekend was the three-day-long Labor Day weekend, and I had nothing better to do. I spent Saturday putting the song together, combining the K-pop music track with vocals from LMFAO, Dev, the Offspring, and the Bloodhound Gang (as unlikely a combo as you'd expect to find in a mashup). I posted it to SoundCloud and got a bunch of positive feedback along with the constructive criticism. Over Sunday I tweaked a few things in the song. And on Monday, I decided to try and put a video together.The whole time my brain was fighting me to stop, to give up, to pretend I'd never tried, and forget it ever existed. But I kept pushing, and out came my first real mashup ever. And here it is.
I put this up on the Internet, tweeted a link, and waited for feedback. I wasn't expecting much to happen; my wildest expectations were that it might get 10,000 views and maybe a link on Reddit's mashups community. Barely even a splash. I had no delusions of grandeur about its value; I just wanted to play with some ideas, get a little experience, and pull this splinter out of my mind.
I was wrong. Very, very wrong. Once you put something on the Internet, you lose any control over what happens to it. Within an hour, my mashup had gotten posted to Buzzfeed where it quickly started to gain traction. Within 12 hours, it had grown to 8,000 views like it was nothing. Within 24 hours, that number shot past my crazy hopeful dream to 16,000. It hit Mashable and The Daily What. That number grew to 34,000. 44,000. 88,000. Blogs and news sites started posting it as their viral video of the day. Know Your Meme picked it up. Radio stations around the world started playing it. 104,000. 122,000.
Then, just as it seemed like it was peaking, something utterly unexpected and amazing happened.
And a few hours later, it got retweeted by the man himself, PSY, in what may become my favorite screenshot ever.
I never expected anything like this. Not at all. It is an incredible honor to have a mashup work celebrated and shared by an artist you took from, let alone two.
Throughout this whole experience, I've been floored by supporters. People on the Internet tend to tell you what they really think while hiding behind the shield of anonymity. So much to my surprise, the response has been phenomenal. There are over 5,000 likes of the video on YouTube, with 26 likes for every dislike. It's been shared on Facebook and Twitter over 12,000 times; the LMFAO tweet itself got over 1,000 retweets. The audio files I posted on the YouTube page have been downloaded over 6,000 times. The video got hundreds of comments, most of which are positive. And I've gotten dozens (if not hundreds) of mentions on Twitter, Facebook, and App.net from friends and strangers who love it.
And the most astonishing thing to me? The mashup itself is catchy, but it's far from being technically great. There are issues with some parts of the song not mashing well, clashes between keys, mismatched song syncing and beatmatching, issues with the video clips not being perfectly aligned, etc. It's my first time making a mashup, and it was meant to be a learning experience, not a viral hit with flawless execution. I've heard my own song dozens of times, both during and after the process of making it. When you hear your own work that much, and you know exactly how it is pieced together, the faults are not only obvious, they get in your face no matter how much you try to shut them out. But it's too late to do anything about that now. The Internet has taken the song and given it legs to run. It's out of my hands, technical merits be damned.
I'm very fortunate to have an audience of thousands of people on social networks to seed ideas to. Many of them fall right on their face. I expected this to, as well. But then that group took it and started a chain reaction which brought this little weekend project to hundreds of thousands. I am deeply grateful for and humbled by the friends and strangers who gave me a week of consistently beaten expectations and holy-crap-I-can't-believe-this-is-real moments. But most of all, I am more encouraged than ever to push forward and keep this little dream of making electronic music alive. I have a renewed sense of confidence and courage to improve, to try again, to turn a what-if into a reality.
So thank you to those who have offered their support, praise, critique, tweets, shares, likes, upvotes and downvotes. Thank you to everyone who overlooked the technical flaws and offered their appreciation. Thank you to LMFAO, Dev, The Offspring, The Bloodhound Gang, and of course PSY, for being the unwitting participants in a learning experiment, for putting something into the world that I could draw from. Thank you to the bloggers, the writers, the curators, and the DJs who gave me the elation of feeling for just a moment like a rock star. I won't ever forget it.
Try something that scares the hell out of you. It just might turn into something wonderful.
The desktop UI was invented almost 30 years ago. The original Macintosh had a 9" screen at 72 DPI. The modern conventions of size were established by these constraints; a 20-pixel tall menu bar provided a 2" target for the fairly-precise mouse pointer. These constants have stuck with us throughout the lifespan of the desktop, occasionally getting ever-so-slightly smaller as DPI were added to displays here or there. At its peak, the desktop iMac reached about 108 DPI, with 1.5x the pixel density over the 30 year old Macintosh. The MacBook Pro received more improvement, getting as close as 128 DPI on a souped-up 15" model with a "high-res" display. 30 years of progress brought us to 1.77x pixel density. These improvements were great, and always breathed new life into the desktop, but we never managed to break through to a truly high density display where pixels were indistinguishable. Despite years of hoping, it seemed as if we had started to hit a wall in terms of packing pixels tightly together, one that would keep us stuck forever seeing the boundaries of a pixel.
Meanwhile, the mobile revolution happened. The original iPhone blew all of these displays out of the water, with what was (at the time) a ridiculous 163 DPI display. Those of us who were paying close attention to this DPI knew at the time what a big deal this was. The iPad also brought a great 132 DPI display, still higher than the best Apple could put into any desktop or notebook. EDIT: Apparently the 17" MacBook Pros had a display at 132 DPI, so equivalent to the iPad. Soon after, those displays took their pixel density and had it doubled, a feat of engineering that is astounding. The results were truly something else. For most people, the move to a Retina display was immediately noticeable and improved the experience while reading, looking at photos, watching video, and browsing the web. Hopes were renewed that Apple would eventually take this technology back to its roots and bring a Retina-class display to a Mac.
That day has finally come. At WWDC 2012, Apple officially put their toe into the water of the high resolution desktop with the new Retina MacBook Pro. They took the old MacBook Pro's display and packed four pixels together in place of each one. On top of that, they took the opportunity to do what Apple does best - get rid of dead technology. Software and media are largely delivered via the Internet, so they could get rid of the heavy, noisy, and large optical drive. Spinning disk drives also got the axe, with tiny solid-state drives taking their place. Wireless networking is pervasive and ubiquitous, far more so than wired networks, so they got rid of the Ethernet port. In their place, they put more USB ports, more Thunderbolt ports, and even an HDMI port. By removing all this bulk, they got the MacBook Pro down to just under 3/4ths of an inch thick, and just less than 4.5 pounds.
The new Retina MacBook Pro is a solid foundation on which to build pro-level notebooks for the next few years, and is in every way an improvement on older notebooks. It has a small share of early adopter issues, some of which will require new software updates, some of which will require waiting until next year's laptop ships. But as someone who has been waiting for a pixel-free world for the better part of a decade, I couldn't have wished for a better and more focused product from Apple.
Before We Begin…
Prior to getting the Retina MacBook Pro, I was using two laptops, one for personal use, and one for work. I will be making my comparisons against these models:
- A Mid-2010 15" MacBook Pro, 8 GB of RAM, 500 GB spinning disk drive, and a 1680x1050 matte display
- A 2011 13" MacBook Pro, 8 GB of RAM, 256 GB solid-state drive, and a 1280x800 glossy display

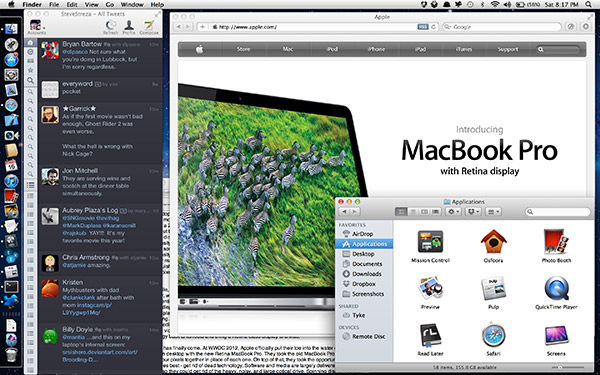

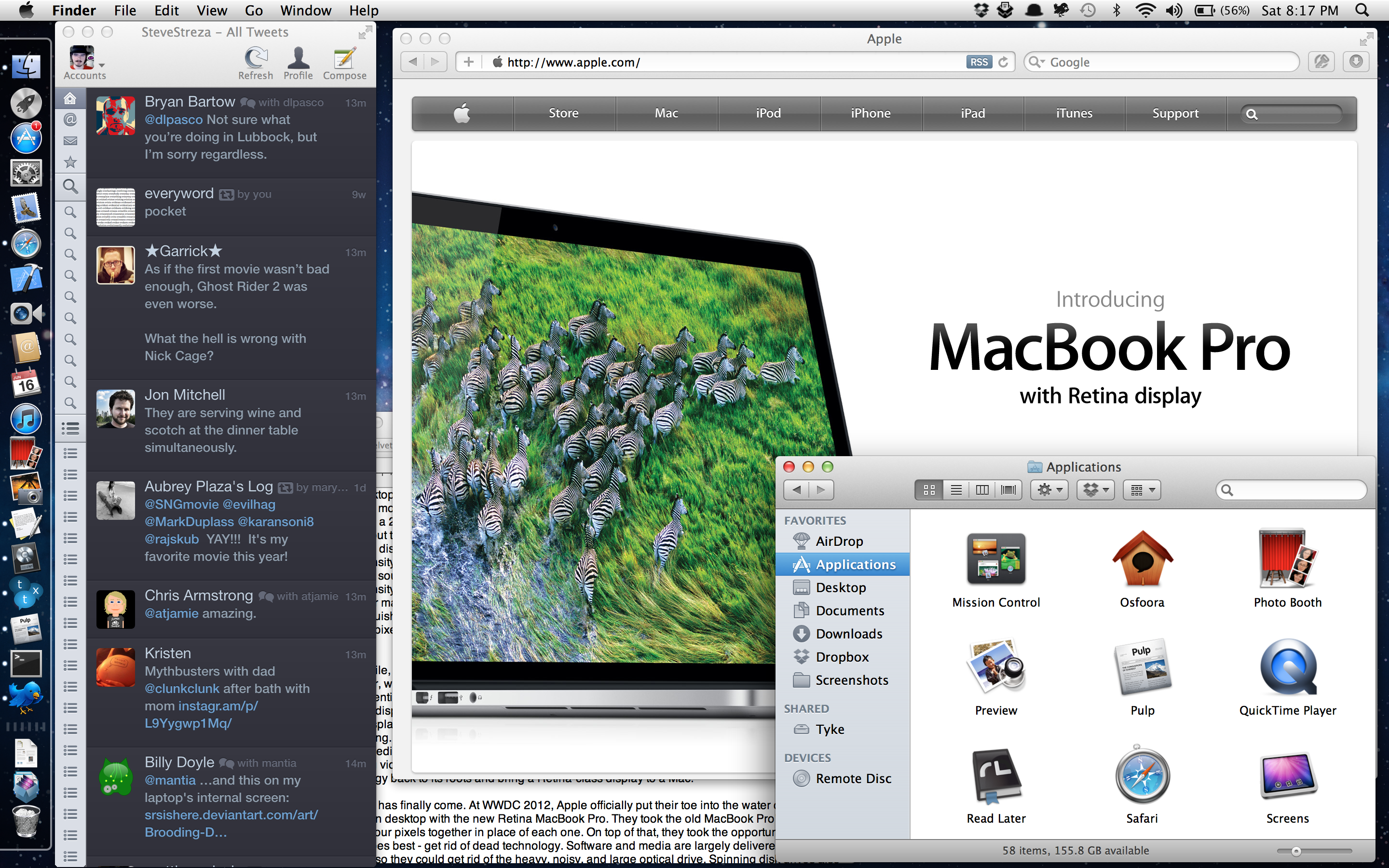

There will be some screenshots attached to this review. Screenshots presented inline have been compressed and scaled down to fit the blog format, but optimized for Retina displays where available. Clicking the screenshot will take you to a full-size lossless PNG format of the screenshot. Be aware, however, that at 2880x1800 pixels, these screenshots are going to be in the range of several megabytes.
The biggest draw of the Retina MacBook Pro is, of course, its Retina display. Doubled in both directions, it boasts a 220 DPI display that is stunning to look at. While people like to disagree and debate what makes a Retina display, the reality is that pixels are not distinguishable on this display, either when placed on the lap or on a desk with enough room for your arms to type on the keyboard. This leads to the same illusion as viewing an iPhone from close up, or an iPad in your lap; the display falls away and all that's left is a smooth canvas to work with. The difference cannot be adequately explained in words. Much like when the iPhone pixel-doubled and adopted the Retina display, it sounded great on paper, but its impact was not truly felt until placing your eyes on it for the first time. My first words when I turned on the display and looked at it were "oh wow". Curves were smoothed out, text looks like print, and photos are unbelievably detailed.
One angle Apple sells on the new display is that, while glossy, it suffers from less of a glare problem due to the way they engineered it. In my daily life I use two laptops (a personal 15" from 2010 with a matte display, and a 13" for my job with a glossy display), so I was intrigued to see how it performed against both. This weekend was particularly sunny in San Francisco, where I live, so I took all three laptops outside (yes, I actually did this, all at once) to try them out. For me there are really two criteria for outdoor use: can I use it outside without problems, and is the effect of sunlight reflection against the eyes uncomfortable? In both cases, the Retina MacBook Pro exceeded Apple's previous glossy and matte displays, which I did not expect at all. The old glossy display needed full brightness to be usable, and the reflection was sharp and could sting the eyes; it really was not feasible for use in direct sunlight. The matte display, while it smoothed out the sharpness of sunlight, caused the display to appear washed out and difficult to use without squinting. The glossy display on the Retina MacBook Pro, however, was both pleasant and fully readable, even at less-than-full display brightness. The reflectivity, while visible, can be looked through, and didn't cause any eye discomfort after a half hour of outdoor use in direct sunlight.
Size, Weight, and I/O
By removing the optical drive and the spinning disk drive, the machine has gone almost entirely solid-state. The result on use is striking - the machine is crazy quiet and has barely any internal motion. Previous laptops have always had a slight shudder during use, which has always felt uncanny to me. It has also made the laptop very light, and not trivially so; one handed pickup places much less strain on the wrist and elbow than previous laptops. This will be a big deal if you're upgrading from any MacBook Pro model shipped previously, but it is still heavier than any MacBook Air. They've used this extra space to pack this puppy with battery, and it shows. On a full charge, I got 5 hours of battery with heavy use, with music playing and the brightness turned up, doing power-intensive tasks like compiling with Xcode and manipulating graphics with Photoshop. The placement of the I/O ports along both sides is also a highly welcome addition, as I constantly have smartphones plugged into my laptop, and I no longer have to wrap cables weirdly around my legs to put things where I want them.
One thing I'm not crazy about, however, is the new MagSafe 2 cable. Its design feels like a step back from its predecessor, and it comes disconnected very easily. Perhaps this is due to the fact that Apple continually keeps removing weight from their laptops, and so the reduced force needed to disconnect the cable is a counterbalance to that. But I've found myself accidentally disconnecting the cable while moving around on my couch, or moving the cable to a more comfortable position. It's a small annoyance, but a real one. And unlike previous MagSafe cables, the tiny clip attached to the cable (used for holding it in a wrapped position in a bag) no longer can clip to the bezel of the laptop display, as you could do with previous laptops.
In normal and even heavier use, the Retina MacBook Pro does get warm, but not hot. It does a pretty good job at spreading the heat throughout the body of the laptop, mostly centralized near the top and less from the area where your wrists are likely to lie. When used for gaming, it does heat up a bit more, though. One area which does become unusually warm, especially while gaming, is the tiny metal pieces between the keys of the keyboard. Under normal use, these become very warm, and games send the heat to an uncomfortable level. This is generally not a problem, but if your fingers rest on the keys, they will occasionally fall into the area between keys, creating contact between your finger and the aluminum chassis. Do this with a game like Diablo 3 running and you will quickly feel how hot those contact points can get. This is a pretty significant drawback for me, and in one 30 minute game of Starcraft 2's Nexus Wars, I counted 12 instances where my finger accidentally fell into that gap, creating a sensation just under a stinging feeling. If you plan on gaming with this notebook, you will probably want to use an external keyboard, or learn to deal with the sensation.
The Retina MacBook Pro contains a new type of fan, with asymmetrical blades. A typical fan has blades that are evenly spaced, which creates a distinct and repeated pattern. This creates two forms of disturbance, one audible and one physical. Symmetrical fans have a distinct white noise that makes them sound like a plane taking off, while also causing a shudder from within the body to be felt by your resting hands on the laptop. The asymmetric fan design of the Retina MacBook disrupts this pattern for an effect that is far less noticeable, creating a quieter sound that doesn't distract nearly as much. The shudder is still present, but barely. To my ear, the fans seem to ramp up much more slowly, and even after several minutes do not get very loud or distracting. This is a huge improvement in the general fan design, and one which will undoubtedly trickle into the rest of Apple's laptops. It's one more area in which Apple focuses on improving a tiny aspect of the experience, but which has profound yet invisible benefits over the lifetime of the machine.

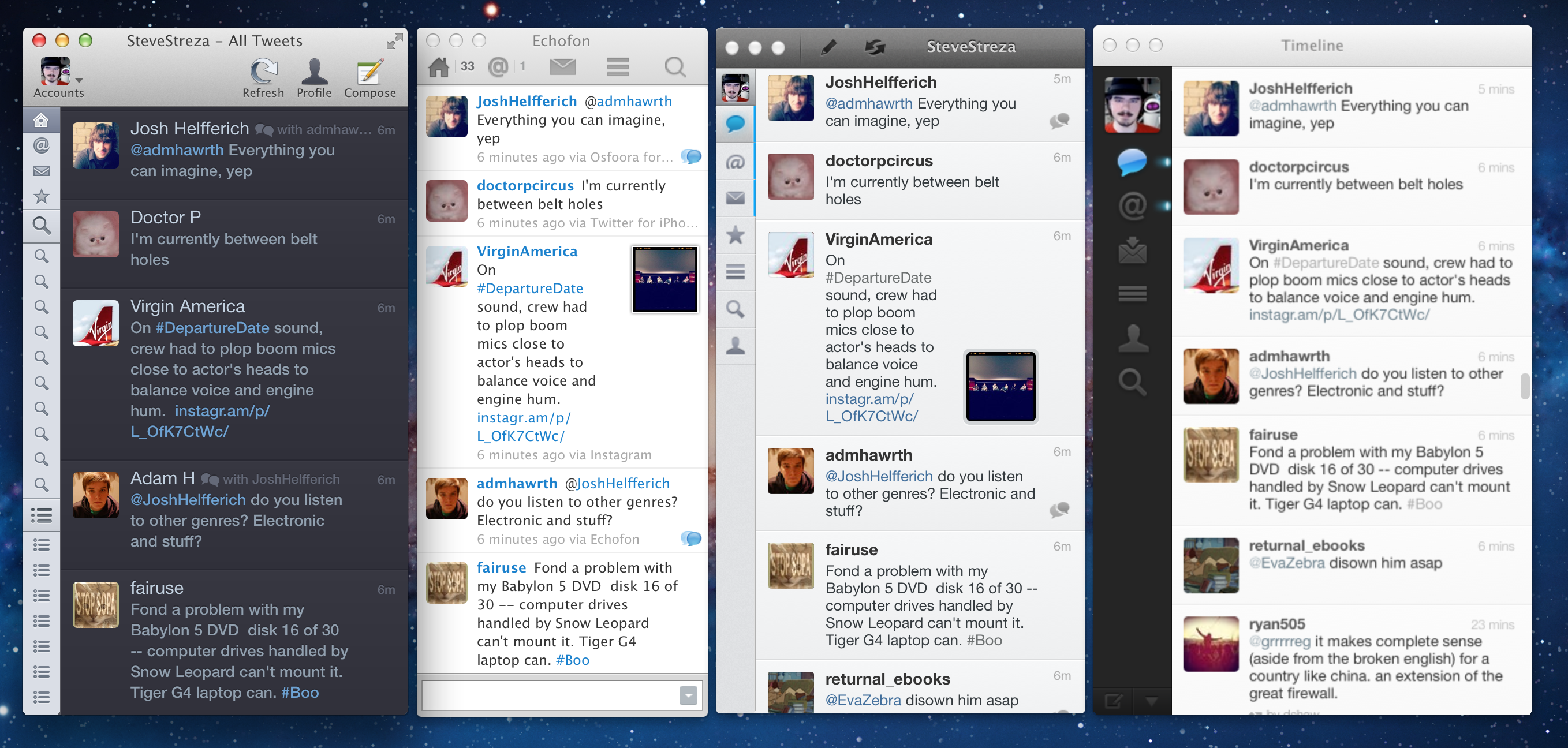

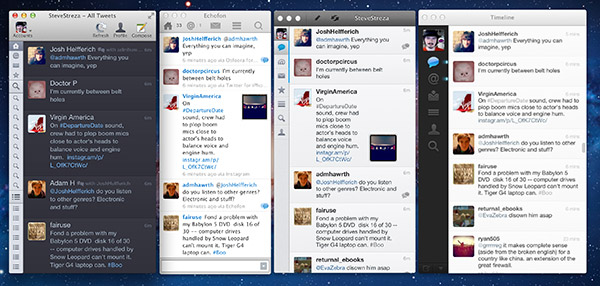

In the case of both iOS and Mac OS X, which share common ancestry, the OS has found a way to do a lot of the hard scaling work for developers if they play by its rules, drawing text and common controls like buttons with high-resolution artwork. And if you stay within Apple's stock apps, that's usually the case. The entire OS has been upgraded with high-resolution images and controls, and the core experience remains fast, fluid, and beautiful. Mail, iTunes, Photo Booth, QuickTime, iCal, Address Book, and the App Store have all been optimized for the new display, among others. Even Apple's Dashboard widgets got a full high-resolution makeover, and just look amazing. However, as with all early adopter technology, you do have some legacy to put up with. Some of Apple's own apps, like GarageBand, have not yet been given the full Retina treatment.

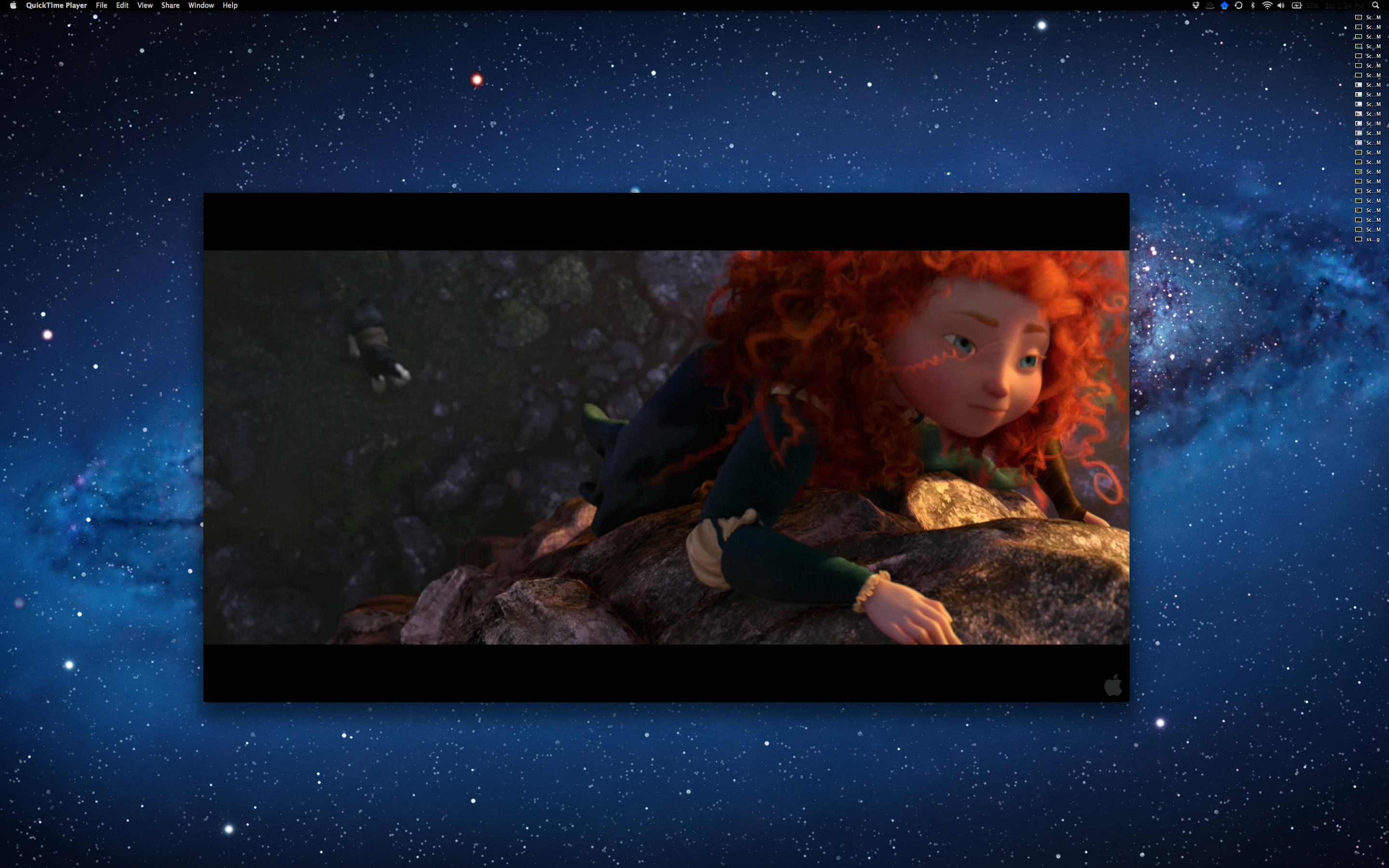

Given that the Retina display is barely a week old, it is entirely forgivable that the thousands of Mac apps were not prepared to take advantage of the extra pixels. That said, of the three platforms Apple has with Retina displays (phone, tablet, and notebook), the notebook is easily where low-resolution content is at its most noticeable, and the nature of the Mac and its legacy means that some apps using old APIs will not get any love from the system. For example, Photoshop (and other tools in Adobe's Creative Suite software) is kicked into an app-wide low-resolution mode, where everything, even the text and controls, are displayed upscaled. Twitter's Mac app, which uses some funky text rendering scheme, looks terrible on the display, with low-resolution text upscaled. Text is the big area where problems are immediately noticeable, rendering some apps unusable. Images, such as those used in custom controls and things like avatars in a Twitter client, are noticeable, but less so.

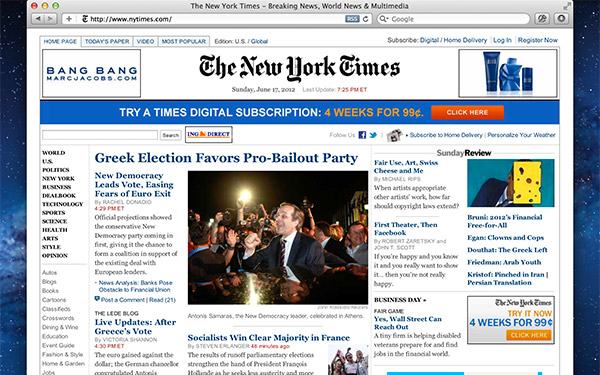

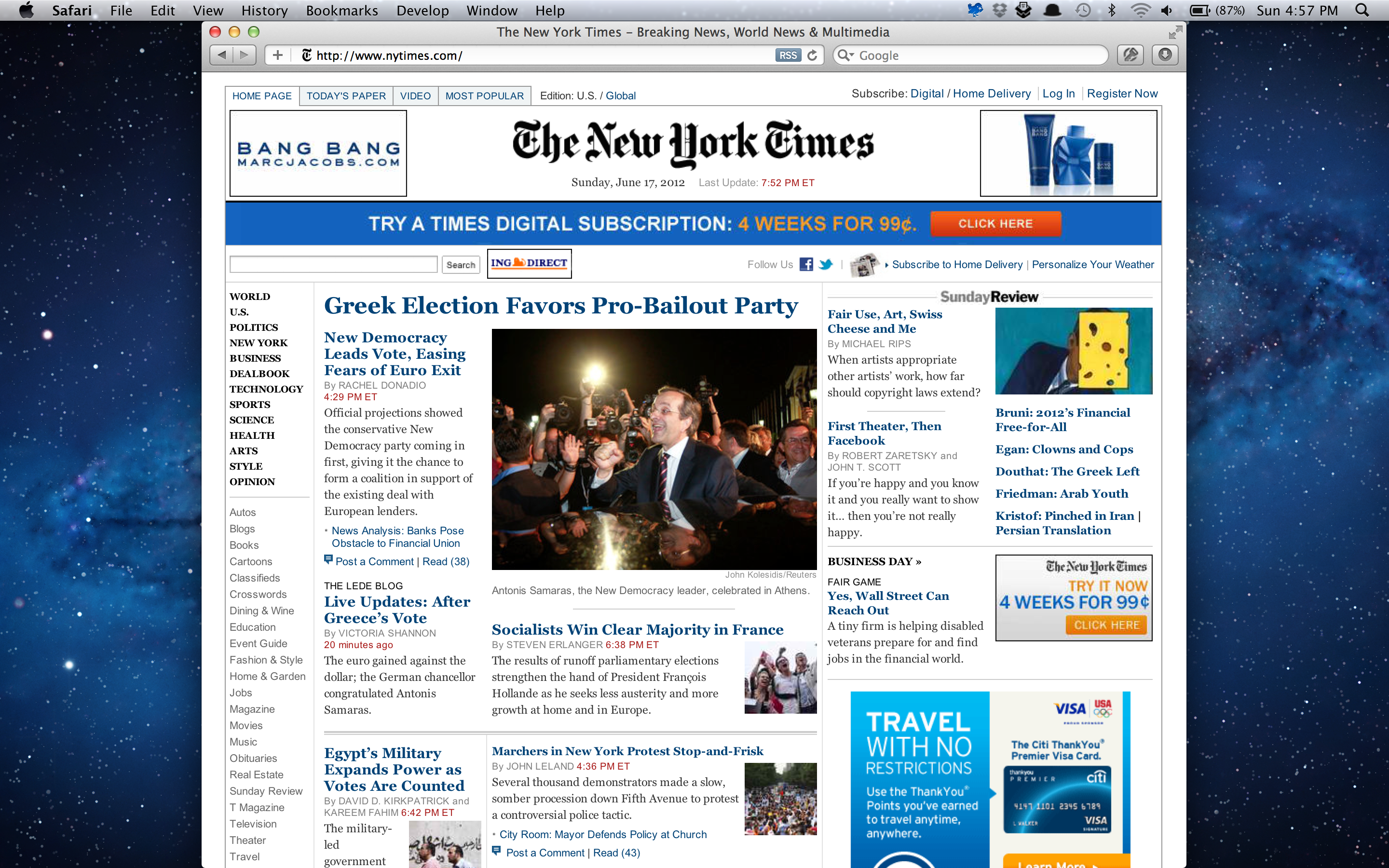

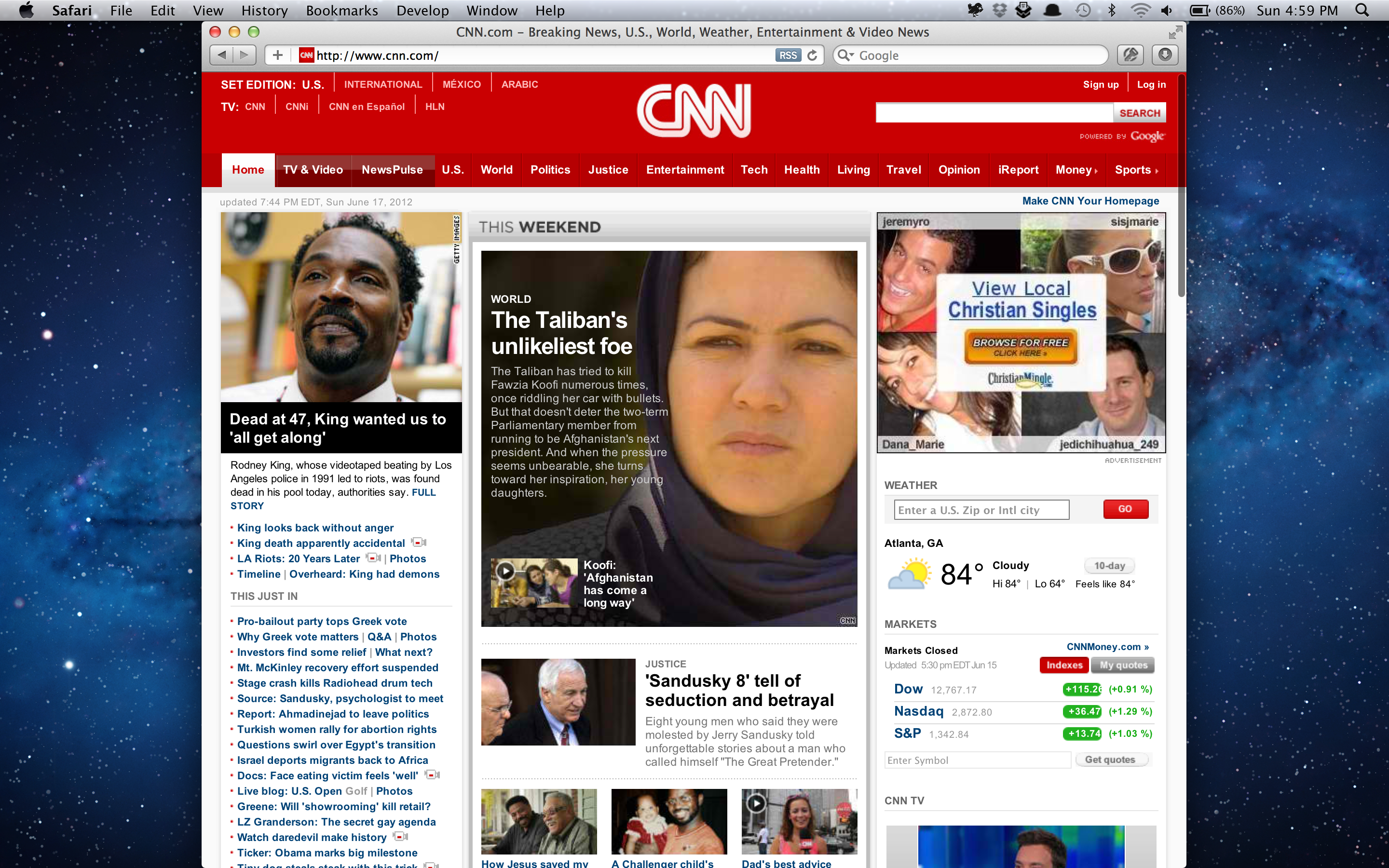

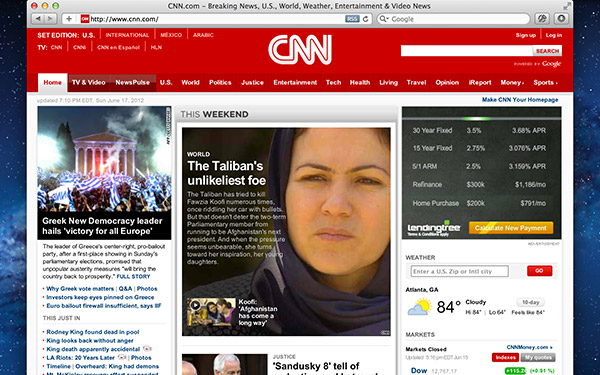

Of course, the Web is also a big part of any computer, and this is also where the low-resolution nature of the desktop really pokes you in the eye. There just aren't very many sites that have been optimized for a Retina display that target the desktop. This is, of course, to be expected, as those haven't existed until now, but it is still jarring. Text on web pages is rendered cleanly, as are form elements and CSS styles, but the vast majority of sites with images don't have Retina graphics yet. This transition is even still happening on the mobile web, where techniques to show Retina graphics have been around for years but are slow to be widely adopted. The same techniques that apply to providing Retina images for mobile web apply to desktop, so at least the frontier is more known this time around. As Retina displays become more ubiquitous, and the techniques for supplying these assets becomes cleaner, there will hopefully be more of an effort to update sites with higher-res graphics. But that process will probably take time. Right now, Safari is the only shipped browser which supports Retina graphics, though the Google Chrome "Canary" experimental builds support it as well.

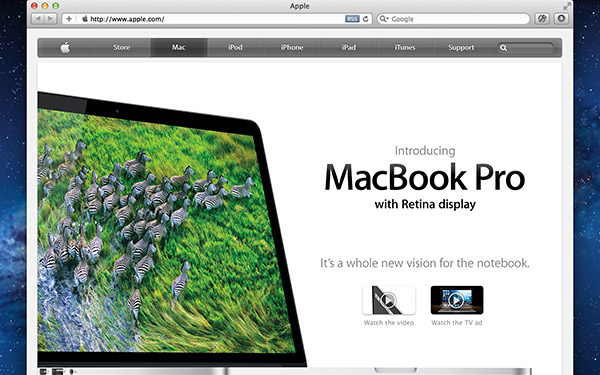

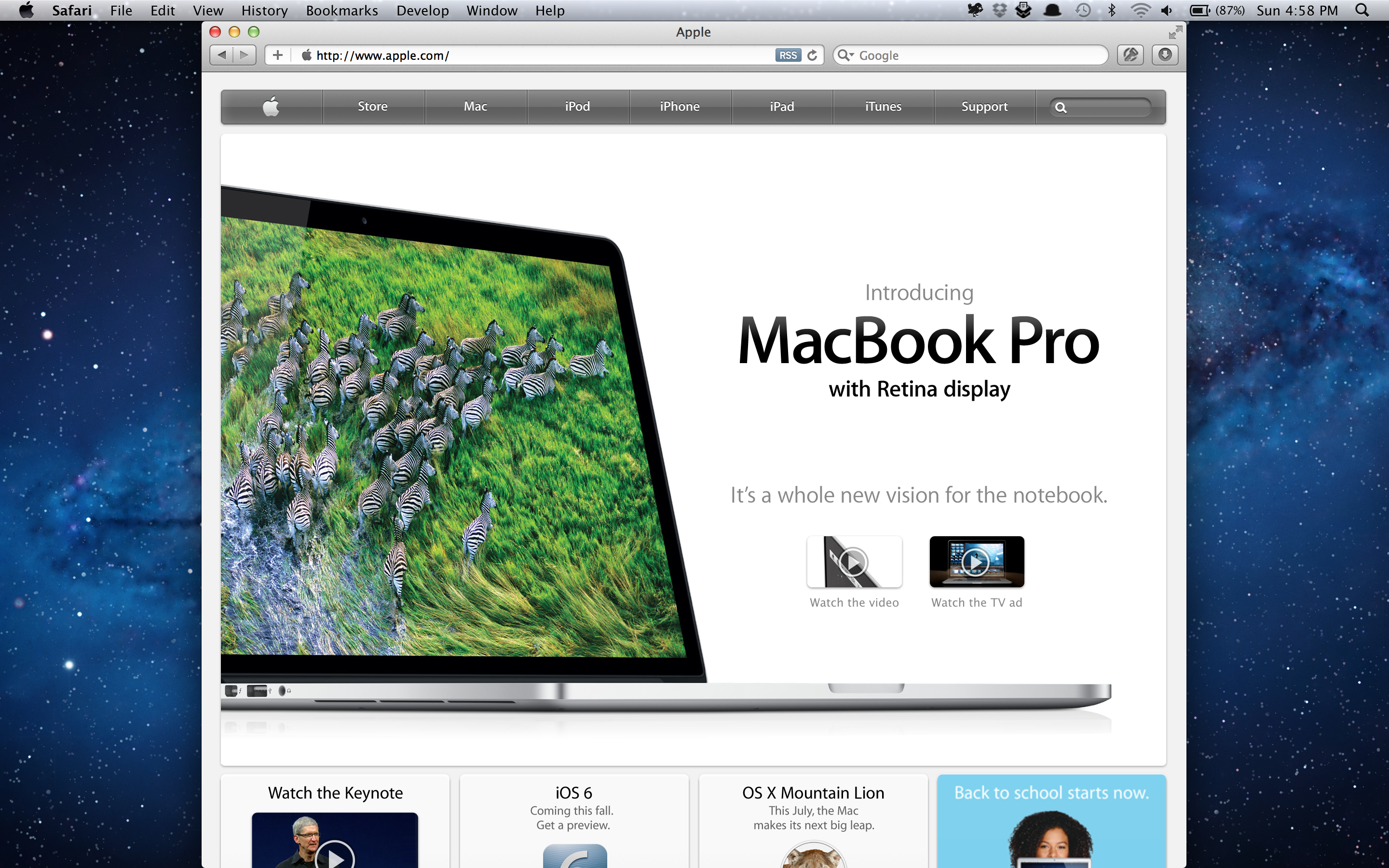

One interesting thing I found is that Apple decided that images should not be displayed at native resolution, but upscaled. In many cases, when you look at an image, you're seeing that image doubled in size. For example, if you click a link to a standalone JPEG in Safari, that will be upscaled to double its original size, regardless of the DPI embedded in the image. (Curiously, screenshots taken on the Retina display have a DPI of 72 set within the image.) Opening them in Preview and viewing at actual size, however, does display the images with pixel-accuracy. Video also generally is upscaled to 2x. This is actually an interesting problem, as even the most high definition video you can find generally maxes out at 1080P, which is about 40% of the number of pixels on a Retina MacBook Pro. There is some video available in the 4K format, which will downscale to the display, but not much. 1080P video looks great, but it'll still be upscaled.
Apple's been pushing developers to modern APIs to accommodate these higher resolution displays for several years. One of the areas they have been pushing developers is to understand the difference between a "point" and a "pixel". A pixel is a physical dot on the screen that you can put a color value into, where a point is a unit that represents a more abstract relationship between the pixel and the scale factor. A Retina display shows things at 2x the normal resolution, so the menu bar (at 20 points tall) becomes 20 pixels on a non-Retina display (at 1x scale) and 40 pixels when run on the Retina display (at 2x scale). Viewed another way, 1 point multiplied by the scale factor becomes the number of pixels. This is what you want as a developer when upscaling things like controls and UI, but when drawing things like text and images you probably want to target the actual pixels that will be shown. But up until now, with displays at 1x, a point has been a pixel, and the APIs have been improperly used interchangeably, which causes a few minor rendering bugs in some applications. These issues will be fixed over time as developers learn the correct way to use the APIs, and as Retina displays become ubiquitous on the desktop.
Games and Graphics
Four times the pixels means you need one incredible graphics chip to push every one of them around at high framerate. This is an area the Retina MacBook Pro did not skimp on. Both the integrated chipset (used for lower power and reduced performance) and the discrete GeForce GT 650M chipset from Nvidia scream on this machine. The OS itself has been running on the GPU for many years, which provides tons of benefits for apps with smooth and fast animations.
But of course, a machine like this is dying for games, and I was all too eager to try out how some games ran at higher resolution. So far, I've put these games on the MacBook Pro:
- Starcraft 2
- Diablo 3

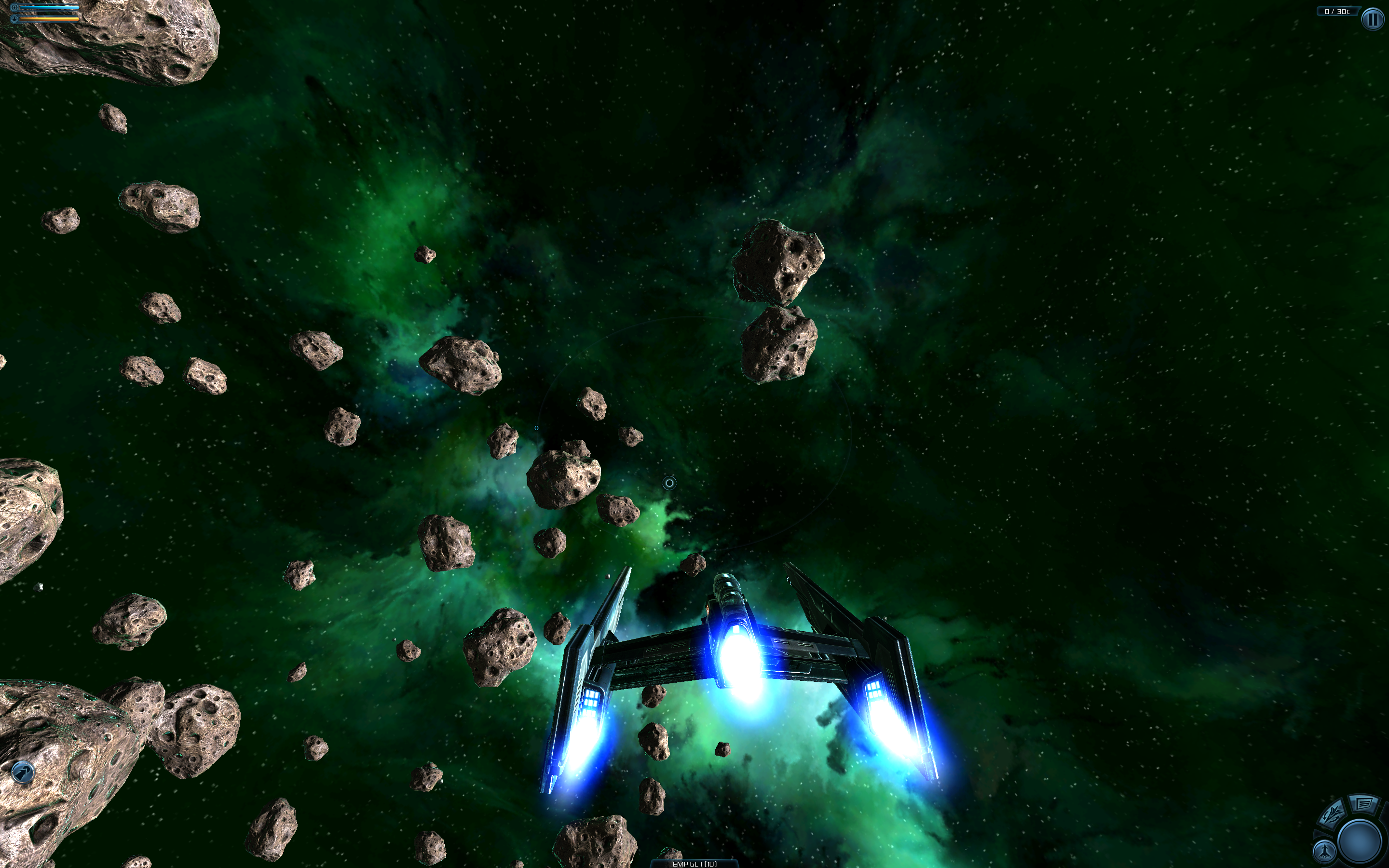

- Galaxy on Fire 2 Full HD
- Kerbal Space Program

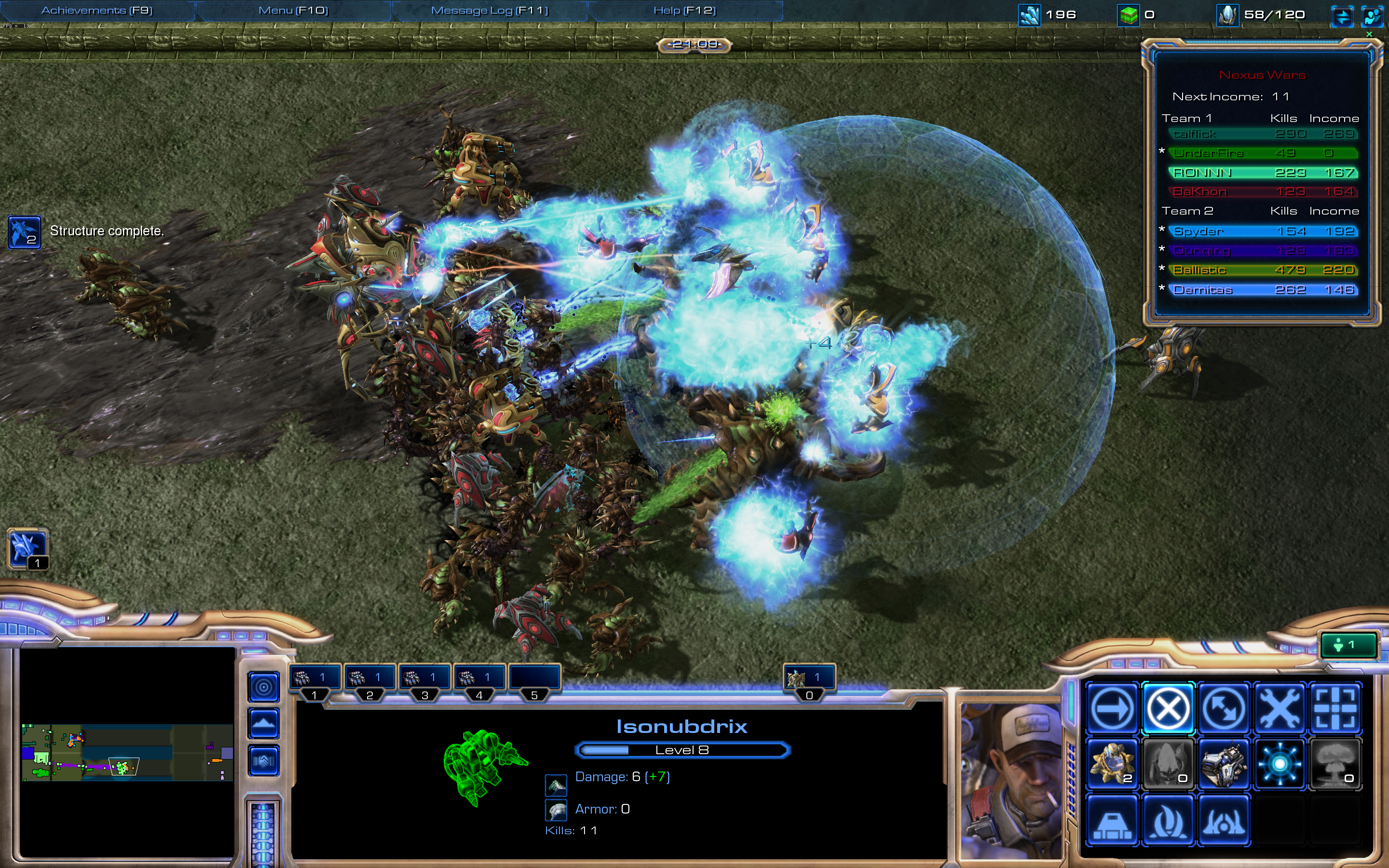

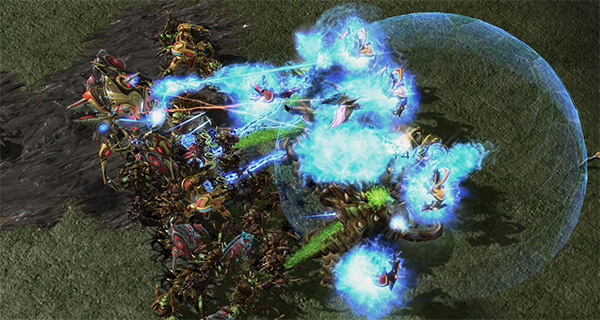

The first three are capable of running in full screen at native resolution; the second two run windowed. In all cases, the performance was astoundingly good. I had Starcraft 2 and Diablo 3 running at 2880x1800 at low-quality graphics with very high framerate. At higher quality graphics, the framerate did stutter a bit, but was still impressive for the resolution. In more intense scenes the smoothness of the gameplay did degrade, especially in one game of Starcraft where there were several hundred units on screen in combat. Blizzard's games scaled up to the new resolution very well, both for in-game graphics, and game/menu UI. Galaxy on Fire 2 scaled up to the resolution, and looked amazing, but with one drawback - the UI of the game menus didn't scale with it. This leads to a lot of squinting at very tiny buttons and words, as well as a lot of mouse movement to hit those tiny targets. I'd guess this is a similar problem to the points/pixels issue laid out above, but I'm not sure. It's just one more tiny (pardon the pun) early adopter issue to deal with, one which will undoubtedly be resolved soon.
